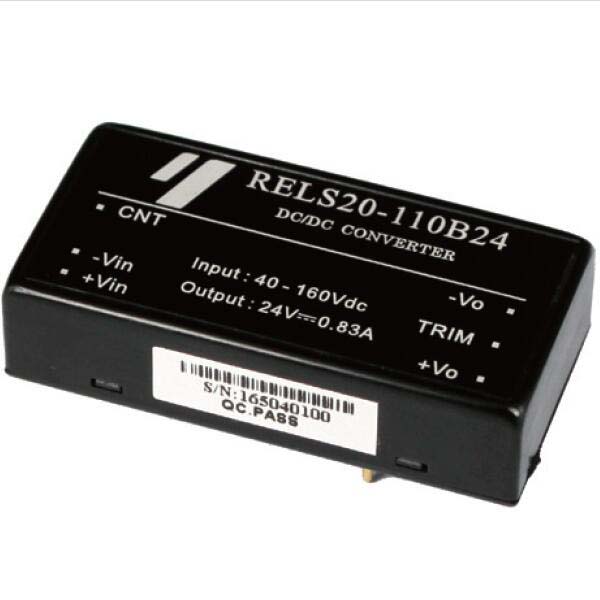

REL20 Series
Special rail transit DC-DC converter, -40 working temperature of ~70 DEG C, wide input range, high voltage isolation, high power density, using the international standard package and pin, in accordance with relevant EN50155 design standards, are widely applied to various fields of vehicle automatic control of the weak.
| Model | Power(W) | Vin(VDC) | Vo(VDC) | Io(A) | type of output | Isolation(VAC) | Package Size(mm) | Apply | Data |
|---|---|---|---|---|---|---|---|---|---|
| RELS20-110B24 | 20 | 40-160 | 24 | 0.83 | Single | 1500Vac | 50.8*25.4*12.7 | Rail transit |  |
| RELS20-110B15 | 20 | 40-160 | 15 | 1.33 | Single | 1500Vac | 50.8*25.4*12.7 | Rail transit | |
| RELS20-110B12 | 20 | 40-160 | 12 | 1.33 | Single | 1500Vac | 50.8*25.4*12.7 | Rail transit | |
| RELS20-110B05 | 20 | 40-160 | 5 | 4 | Single | 1500Vac | 50.8*25.4*12.7 | Rail transit | |
| RELS20-110B03 | 20 | 40-160 | 3.3 | 5 | Single | 1500Vac | 50.8*25.4*12.7 | Rail transit | |
| RELS20-24B24 | 20 | 9-36 | 24 | 0.83 | Single | 1500Vac | 50.8*25.4*12.7 | Rail transit | |
| RELS20-24B15 | 20 | 9-36 | 15 | 1.33 | Single | 1500Vac | 50.8*25.4*12.7 | Rail transit | |
| RELS20-24B12 | 20 | 9-36 | 12 | 1.67 | Single | 1500Vac | 50.8*25.4*12.7 | Rail transit | |
| RELS20-24B05 | 20 | 9-36 | 5 | 4 | Single | 1500Vac | 50.8*25.4*12.7 | Rail transit | |
| RELS20-24B03 | 20 | 9-36 | 3.3 | 5 | Single | 1500Vac | 50.8*25.4*12.7 | Rail transit | |
